Total Chaos Weld-On Rear Axle Shock Mounts For 4Runner (1986-1995)
FEATURES
Laser cut 1/4" thick plates are pre welded with gussets that are designed to protect lower shock rod ends.
Places lower shock eyelet 7" off of the housing.
Intended for 3" axle housings, but can be ground to fit larger applications.
Grade 8 hardware included.
Welding is required to install.
Sold as a pair.
PARTS INCLUDED
UNIVERSAL REAR SHOCK MOUNTS - QTY: (2)
BOLT: 1/2''-20 x 3.5'' GRADE 8 (ZINC) - QTY: (2)
WASHER: 1/2''-20 AN (GOLD ZINC) - QTY: (4)
NUT: 1/2''-20 NYLOCK (ZINC) - QTY: (2)

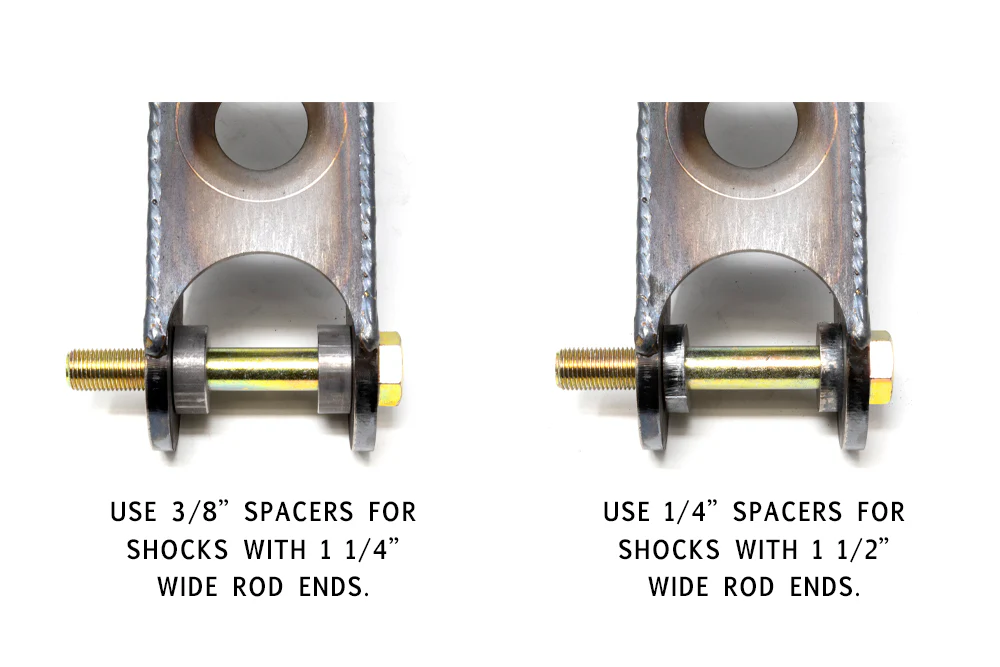

1/4" ROD END SPACER - QTY: (4)
3/8" ROD END SPACER - QTY: (4)
FEATURES
Laser cut 1/4" thick plates are pre welded with gussets that are designed to protect lower shock rod ends.
Places lower shock eyelet 7" off of the housing.
Intended for 3" axle housings, but can be ground to fit larger applications.
Grade 8 hardware included.
Welding is required to install.
Sold as a pair.
PARTS INCLUDED
UNIVERSAL REAR SHOCK MOUNTS - QTY: (2)
BOLT: 1/2''-20 x 3.5'' GRADE 8 (ZINC) - QTY: (2)
WASHER: 1/2''-20 AN (GOLD ZINC) - QTY: (4)
NUT: 1/2''-20 NYLOCK (ZINC) - QTY: (2)
1/4" ROD END SPACER - QTY: (4)
3/8" ROD END SPACER - QTY: (4)
Description
FEATURES
Laser cut 1/4" thick plates are pre welded with gussets that are designed to protect lower shock rod ends.
Places lower shock eyelet 7" off of the housing.
Intended for 3" axle housings, but can be ground to fit larger applications.
Grade 8 hardware included.
Welding is required to install.
Sold as a pair.
PARTS INCLUDED
UNIVERSAL REAR SHOCK MOUNTS - QTY: (2)
BOLT: 1/2''-20 x 3.5'' GRADE 8 (ZINC) - QTY: (2)
WASHER: 1/2''-20 AN (GOLD ZINC) - QTY: (4)
NUT: 1/2''-20 NYLOCK (ZINC) - QTY: (2)
1/4" ROD END SPACER - QTY: (4)
3/8" ROD END SPACER - QTY: (4)
